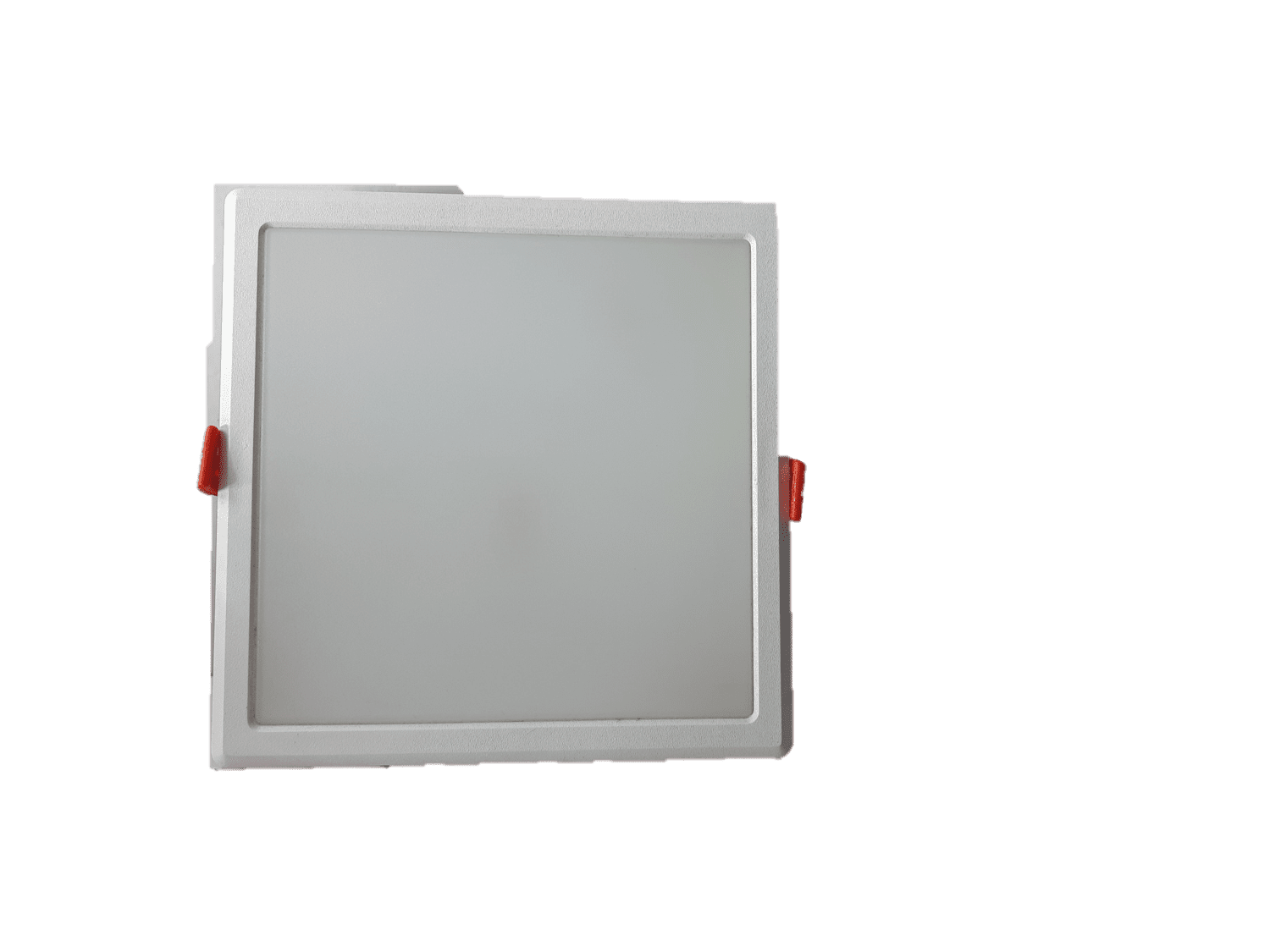

LED Panel light- Trim Series (Recessed Mounted)

Name: LED Panel light- Trim Series (Recessed Mounted)
SKU: 3016
Availability: InStock

In Stock

From ~~₹379.00~~ ₹185.00

Description

The lights in this series looks sophisticated, decent and unique. Which gives refined light throw for indoor applications.

Available shapes are Square and Round.

MODEL	RUPL9W-RO/SQ-CW/NW/WW/3 in 1	RUPL15W-RO/SQ-CW/NW/WW/3 in 1	RUPL20W-RO/SQ-CW/NW/WW/3 in 1	RUPL24W-RO/SQ-CW/NW/WW/3 in 1
Input Power(W)	9W (+/- 5%)	15W (+/- 5%)	20W (+/- 5%)	24W (+/- 5%)
Input Voltage (Vac)	230 Vac	230 Vac	230 Vac	230 Vac
Input Voltage Range(Vac)	100-300 Vac	100-300 Vac	100-300 Vac	100-300 Vac
Rated Frequency (Hz)	50Hz	50Hz	50Hz	50Hz
Power Factor	>=0.9	>=0.9	>=0.9	>=0.9
LED Light Source	SMD	SMD	SMD	SMD
LED Lifespan	>=50,000 Hours	>=50,000 Hours	>=50,000 Hours	>=50,000 Hours
LED light source efficacy (lm/W)	>135 lm/W	>135 lm/W	>135 lm/W	>135 lm/W
Colour Temperature	3000k/ 4000k/ 6500k	3000k/ 4000k/ 6500k	3000k/ 4000k/ 6500k	3000k/ 4000k/ 6500k
Shape	Round/Square	Round/Square	Round/Square	Round/Square
Luminous Efficacy (lm/w)	>90	>90	>90	>90
Luminous Flux(lm)	>810	>1350	>1800	>2160
CRI	>80	>80	>80	>80
Beam Angle	120 Degree	120 Degree	120 Degree	120 Degree
Lens Availability	NA	NA	NA	NA
Body Material	PC	PC	PC	PC
Front Cover	Polycarbonate	Polycarbonate	Polycarbonate	Polycarbonate
Ingress Protection	IP20	IP20	IP20	IP20
Operating Temperature	0 to 55 Degree	0 to 55 Degree	0 to 55 Degree	0 to 55 Degree
Outer Size (mm)
Cut out (mm)	100 x 100	150 x 150	150 x 150	200 x 200
Certification	LM80, BIS	LM80, BIS	LM80, BIS	LM80, BIS
Remarks	3 in 1 also available	3 in 1 also available	3 in 1 also available	3 in 1 also available

Shape	Round, Square
Power	18W, 24W, 9W
Light Shade	Cool White (6500k CCT), Neutral White (4000k CCT), Warm White (3000k CCT)
